FIBRE OPTIC SPLICE PROTECTION
Manufacturer of high quality crimp splice protection for fibre optics
EASY CRIMP SPLICE PROTECTION
Deutsche Telekom AG - TS 0338/96 compliant
(EG-CSP-250M/P150)
Product description
Splice Protection Czech s.r.o. “Easy Crimp” splice offers mechanical and environmental protection for fibre optic joints.

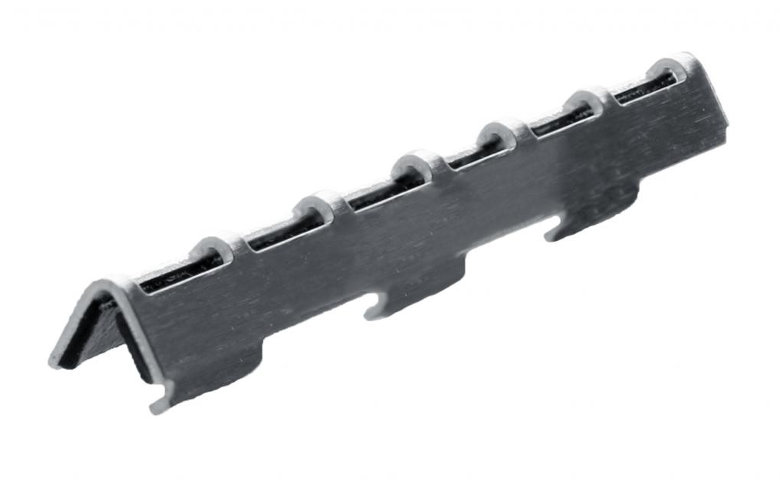

The aluminium crimp splice is coated with an adhesive mastic, and simply folded around the spliced fibres, using a crimping tool. It does not require the application of heat after fusion splicing.
The splice loss is unaffected by using the crimp splice protector.
Key Advantages
- No heat required
- Saves battery life for fusion splicing
- Installation time less than 30 seconds
- Good protection for uncovered fibres
- Fast assembly time
Specification
| Dimensions closed (WxHxL) | 1.1 x 3.2 x 30 mm |
|---|---|
| Material | Aluminium marine type rust free polished |
| Adhesive | Modified PIB |
| Fibre Diameter | 250 microns |
| Cleave length max. | 25 mm |
| Processing temperature | -5°C – +45°C |
| Operating temperature range | -20°C – +70°C |

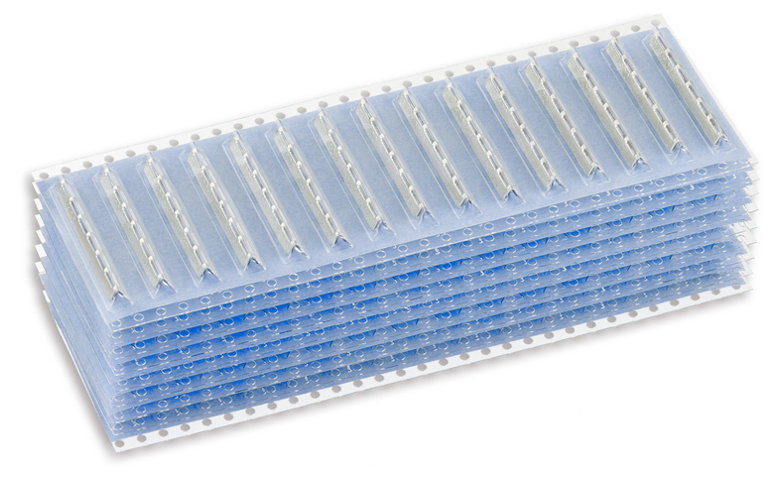

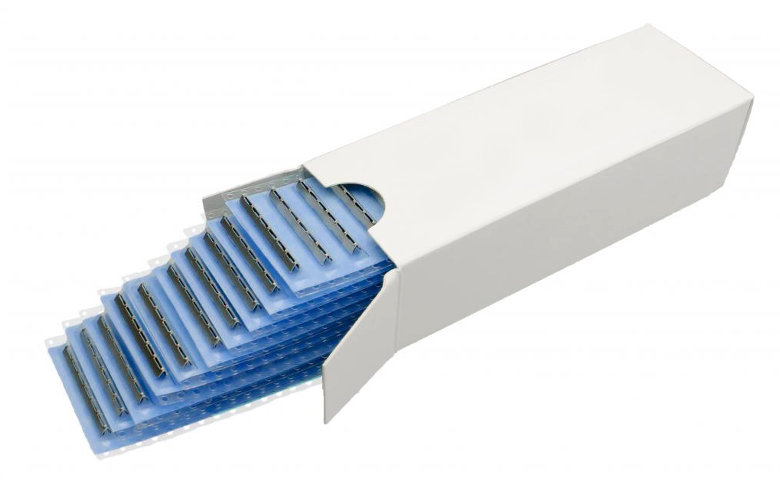

| Packing unit | 150 pcs and 120 pcs |
